MySQL Definitions Online — for the Card and Chart

Here are definitions not included in the MySQL Card and Chart. (Do you think they should be? Would you remove something else? More pages?) These are the answers to all the little gray reference symbols in print.

This page:
condition as in: CREATE PROCEDURE … DELCARE … CONDITION FOR condition … ; (manual's condition_value for Conditions)
distributed-transaction-commands as in statement: XA distributed-transaction-commands;
encryption used in GRANT … REQUIRE encryption
error_number (4 digit) and
error_state (5 character) used in handling error conditions
h-before (manual's handler_type) and
h-after (manual's condition_value for Handlers) used in CREATE PROCEDURE … DELCARE h-before HANDLER FOR h-after … ;
named-characters used in sRegularExpression, for REGEXP or RLIKE comparison
partition-definition and
partition-command used in tops and CREATE TABLE and ALTER TABLE
reserved-words avoid as identifiers, or backtick-quote
time used in event-definition

condition


See the expanded DECLARE clause below.


distributed-transaction-commands

Here are the distributed transaction commands, part of the XA statement.


encryption

Here are the encryptions that can be required for user connections. They are used in the GRANT statement:

If you specify more than one of the last three options you may separate them with AND.


error_number and
error_state

See the MySQL Manual for Error Codes (Appendix C for the 5.1 manual). error_state is a 5-character code for a broad class of conditions, e.g. 'HY000'error_number is a 4-digit number for a specific error, e.g. 1022 for duplicate key. It is called an sqlstate_value in the manual.

These are used only on this page, not in print.


h-before and
h-after

h-before h-after A handler is SQL that responds to a MySQL error condition. It gets declared at the beginning of a procedure or function in its CREATE statement. Here are the parts of the handler declaration that aren't defined on the printed reference.


Here is the compact DECLARE clause from the the CREATE FUNCTION/PROCEDURE statement from the printed reference.

(Note the erroneous dotted line around h-after — it should be comma-separated.)

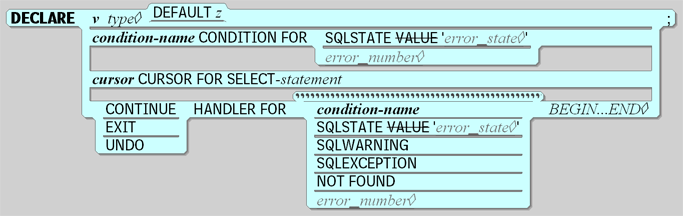

Here's an expanded DECLARE clause. This would be in the printed reference if there were room:


named-characters

Here are all special named characters (manual calls these "collating elements") for MySQL Regular Expressions. An appendix of the MySQL manual says they are listed in the source file regexp/cname.h

Example: SELECT * FROM t WHERE c REGEXP '[[.CR.]][[.LF.]]'    (CR-LF pair)
Example: SELECT * FROM t WHERE c REGEXP '[[.NUL.]-[.US.]]'    (control character)
Example: SELECT * FROM t WHERE c REGEXP '[[.colon.][.backslash.][.slash.][.period.]]'    (path character)

        [.NUL.]
        [.SOH.]
        [.STX.]
        [.ETX.]
        [.EOT.]
        [.ENQ.]
        [.ACK.]
        [.BEL.]
        [.alert.]
        [.BS.]
        [.backspace.]             [.\b.]
        [.HT.]
        [.tab.]                   [.\t.]
        [.LF.]
        [.newline.]               [.\n.]
        [.VT.]
        [.vertical-tab.]
        [.FF.]
        [.form-feed.]
        [.CR.]
        [.carriage-return.]       [.\r.]
        [.SO.]
        [.SI.]
        [.DLE.]
        [.DC1.]
        [.DC2.]
        [.DC3.]
        [.DC4.]
        [.NAK.]
        [.SYN.]
        [.ETB.]
        [.CAN.]
        [.EM.]
        [.SUB.]
        [.ESC.]
        [.IS4.]
        [.FS.]
        [.IS3.]
        [.GS.]
        [.IS2.]
        [.RS.]
        [.IS1.]
        [.US.]
        [.space.]                 [. .]
        [.exclamation-mark.]      [.!.]
        [.quotation-mark.]        [.\".]
        [.number-sign.]           [.#.]
        [.dollar-sign.]           [.$.]
        [.percent-sign.]          [.%.]
        [.ampersand.]             [.&.]
        [.apostrophe.]            [.\'.]
        [.left-parenthesis.]      [.(.]
        [.right-parenthesis.]     [.).]
        [.asterisk.]              [.*.]
        [.plus-sign.]             [.+.]
        [.comma.]                 [.,.]
        [.hyphen.]                [.-.]
        [.hyphen-minus.]          [.-.]
        [.period.]                [...]
        [.full-stop.]             [...]
        [.slash.]                 [./.]
        [.solidus.]               [./.]
        [.zero.]                  [.0.]
        [.one.]                   [.1.]
        [.two.]                   [.2.]
        [.three.]                 [.3.]
        [.four.]                  [.4.]
        [.five.]                  [.5.]
        [.six.]                   [.6.]
        [.seven.]                 [.7.]
        [.eight.]                 [.8.]
        [.nine.]                  [.9.]
        [.colon.]                 [.:.]
        [.semicolon.]             [.;.]
        [.less-than-sign.]        [.<.]
        [.equals-sign.]           [.=.]
        [.greater-than-sign.]     [.>.]
        [.question-mark.]         [.?.]
        [.commercial-at.]         [.@.]
        [.left-square-bracket.]   [.[.]
        [.backslash.]             [.\\.]
        [.reverse-solidus.]       [.\\.]
        [.right-square-bracket.]  [.].]
        [.circumflex.]            [.^.]
        [.circumflex-accent.]     [.^.]
        [.underscore.]            [._.]
        [.low-line.]              [._.]
        [.grave-accent.]          [.`.]
        [.left-brace.]            [.{.]
        [.left-curly-bracket.]    [.{.]
        [.vertical-line.]         [.|.]
        [.right-brace.]           [.}.]
        [.right-curly-bracket.]   [.}.]
        [.tilde.]                 [.~.]
        [.DEL.]


partition-definition and
partition-command


reserved-words

Avoid these as identifiers. Or backtick-quote them, as in: SELECT `group` FROM `order`;

ACCESSIBLE
ADD
ALL
ALTER
ANALYZE
AND
AS
ASC
ASENSITIVE

BEFORE
BETWEEN
BIGINT
BINARY
BLOB
BOTH
BY

CALL
CASCADE
CASE
CHANGE
CHAR
CHARACTER
CHECK
COLLATE
COLUMN
CONDITION
CONNECTION
CONSTRAINT
CONTINUE
CONVERT
CREATE
CROSS
CURRENT_DATE
CURRENT_TIME
CURRENT_TIMESTAMP
CURRENT_USER
CURSOR
DATABASE
DATABASES
DAY_HOUR
DAY_MICROSECOND
DAY_MINUTE
DAY_SECOND
DEC
DECIMAL
DECLARE
DEFAULT
DELAYED
DELETE
DESC
DESCRIBE
DETERMINISTIC
DISTINCT
DISTINCTROW
DIV
DOUBLE
DROP
DUAL

EACH
ELSE
ELSEIF
ENCLOSED
ESCAPED
EXISTS
EXIT
EXPLAIN

FALSE
FETCH
FLOAT
FLOAT4
FLOAT8
FOR
FORCE
FOREIGN
FROM
FULLTEXT
GRANT
GROUP

HAVING
HIGH_PRIORITY
HOUR_MICROSECOND
HOUR_MINUTE
HOUR_SECOND

IF
IGNORE
IN
INDEX
INFILE
INNER
INOUT
INSENSITIVE
INSERT
INT
INT1
INT2
INT3
INT4
INT8
INTEGER
INTERVAL
INTO
IS
ITERATE

JOIN

KEY
KEYS
KILL
LEADING
LEAVE
LEFT
LIKE
LIMIT
LINEAR
LINES
LOAD
LOCALTIME
LOCALTIMESTAMP
LOCK
LONG
LONGBLOB
LONGTEXT
LOOP
LOW_PRIORITY

MATCH
MEDIUMBLOB
MEDIUMINT
MEDIUMTEXT
MIDDLEINT
MINUTE_MICROSECOND
MINUTE_SECOND
MOD
MODIFIES

NATURAL
NO_WRITE_TO_BINLOG
NOT
NULL
NUMERIC

ON
OPTIMIZE
OPTION
OPTIONALLY
OR
ORDER
OUT
OUTER
OUTFILE

PRECISION
PRIMARY
PROCEDURE
PURGE
RANGE
READ
READ_ONLY
READ_WRITE
READS
REAL
REFERENCES
REGEXP
RELEASE
RENAME
REPEAT
REPLACE
REQUIRE
RESTRICT
RETURN
REVOKE
RIGHT
RLIKE

SCHEMA
SCHEMAS
SECOND_MICROSECOND
SELECT
SENSITIVE
SEPARATOR
SET
SHOW
SMALLINT
SPATIAL
SPECIFIC
SQL
SQL_BIG_RESULT
SQL_CALC_FOUND_ROWS
SQL_SMALL_RESULT
SQLEXCEPTION
SQLSTATE
SQLWARNING
SSL
STARTING
STRAIGHT_JOIN
TABLE
TERMINATED
THEN
TINYBLOB
TINYINT
TINYTEXT
TO
TRAILING
TRIGGER
TRUE

UNDO
UNION
UNIQUE
UNLOCK
UNSIGNED
UPDATE
USAGE
USE
USING
UTC_DATE
UTC_TIME
UTC_TIMESTAMP

VALUES
VARBINARY
VARCHAR
VARCHARACTER
VARYING

WHEN
WHERE
WHILE
WITH
WRITE

X509
XOR

YEAR_MONTH

ZEROFILL

time

This should have been simply dt, the data type symbol for date and time. It is used in the event definition. It could be a literal e.g. '1999-12-31 23:59:59', or a function or an expression.
